Description

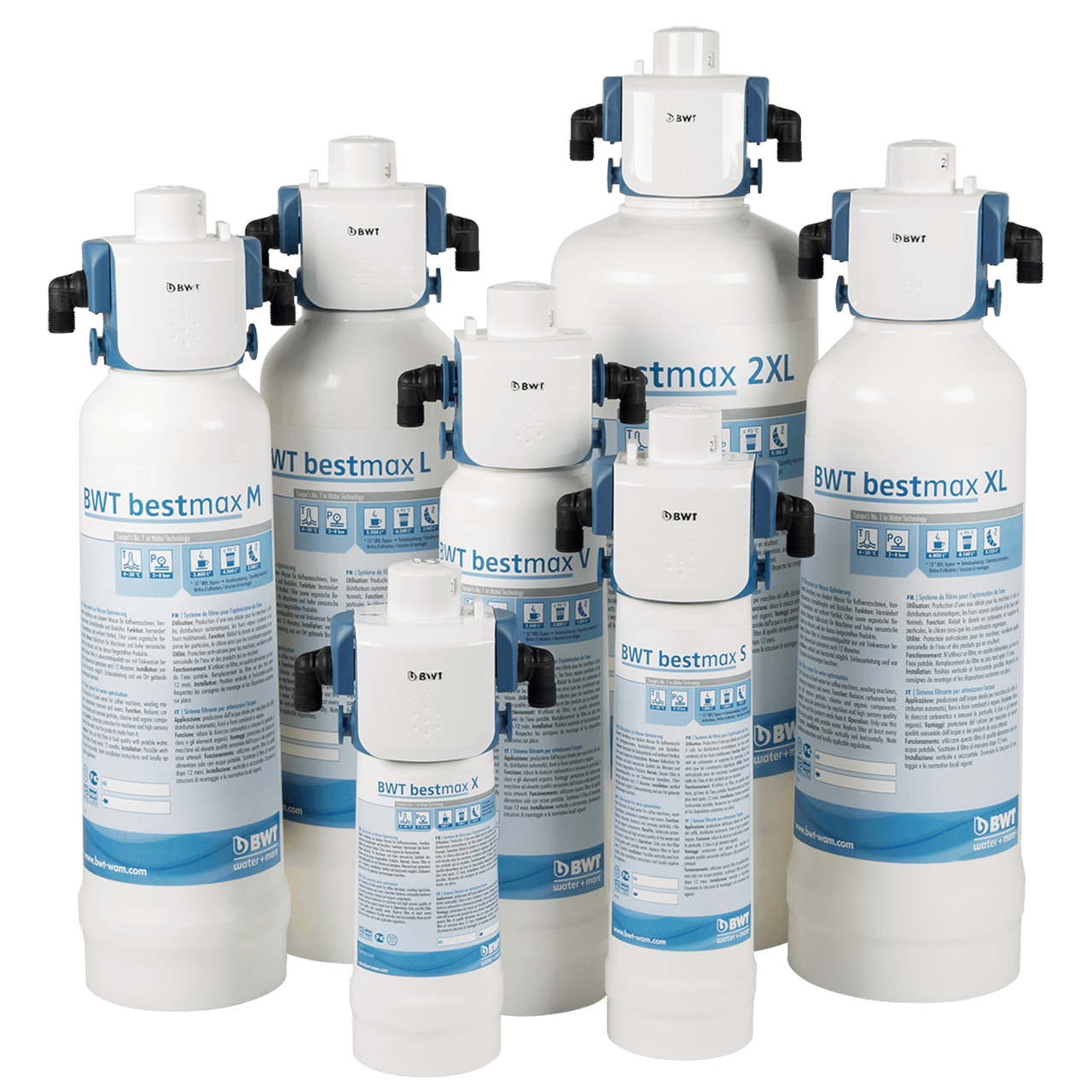

BWT Bestmax Water Softener/Filter
CaffeTech offers the BWT bestmax which is the simple and practical all-round filtration solution developed for the numerous requirements in gastronomy. For unique coffee water, ideal water for vending machines and optimal pure steam for ovens and combination steamers. Thanks the new High-Efficiency-Technology (HET), water optimization is even more efficient. The result: consistently high quality of all hot and cold beverages in cups and mugs, in the kitchen and in the bakery, for all foods and baked goods
Bestmax Filter Cartridges range from 500 - 7500 litre capacity. Prices vary according to the filtration capacity
Features
- Universal filter system for water optimisation in the gastronomy sector
- Protection of the machine technology against limescale deposits, particles, off-flavour components and chlorine
- Simple installation via universal BWT besthead FLEX connection technology
- Economic use for any water requirements thanks to numerous filter sizes
- Space-saving design that is very easy to handle
- Ensures best protection of technical equipment and the quality of all products made using it
Specifications
BWT bestmax type | X | S | V | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|
Connection thread (in/out), (1) | variable | variable | variable | variable | variable | variable | variable |
Inlet pressure, | 2 – 8 | 2 – 8 | 2 – 8 | 2 – 8 | 2 – 8 | 2 – 8 | 2 – 8 |
Water temperature, | 4 – 30 | 4 – 30 | 4 – 30 | 4 – 30 | 4 – 30 | 4 – 30 | 4 – 30 |
Ambient temperature, | 4 – 40 | 4 – 40 | 4 – 40 | 4 – 40 | 4 – 40 | 4 – 40 | 4 – 40 |
Total height without bracket (A) in mm, approx. | 280 | 360 | 420 | 475 | 500 | 500 | 574 |
Total height with bracket (B) in mm, approx. | 300 | 385 | 445 | 500 | 530 | 530 | 600 |
Connection height (C) in mm | 230 | 310 | 370 | 425 | 450 | 450 | 520 |
Distance to floor (D) in mm | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
Installation length (E) in mm | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
Ø filter cartridge (F) in mm | 88 | 88 | 115 | 130 | 145 | 145 | 185 |
Weight in kg, approx. (dry/wet) | 0.5/1.1 | 0.9/1.5 | 2.1/3.2 | 2.4/4.2 | 3.4/5.9 | 3.8/6.0 | 7.5/11.0 |
Order no. of filter cartridge | FS20I00A00 | FS22I00A00 | FS23I00A00 | FS24I00A00 | FS26I00A00 | FS28I00A00 | FS30I00A00 |
Size | S | M | L | XL |
Capacity | 1200L | 4560L | 6240L | 8160L |
Flow Rate | 1L/min | 1L/min | 1L/min | 1L/min |
Pressure | 2/8 bar | 2/8 bar | 2/8 bar | 2/8 bar |
Water Temp | 4 - 30ºC | 4 - 30ºC | 4 - 30ºC | 4 - 30ºC |
Height with head | 350mm | 465mm | 490mm | 492mm |
Cartridge Ø | 88mm | 130mm | 145mm | 145mm |
Weight (kg) | 0.9 | 2.4 | 3.4 | 3.8 |
