Description
- Chassis constructed by 4mm to 8mm thick hot rolled steel with welding assemble.
- Powder coating surface finishing with white color to meet European customer priority.

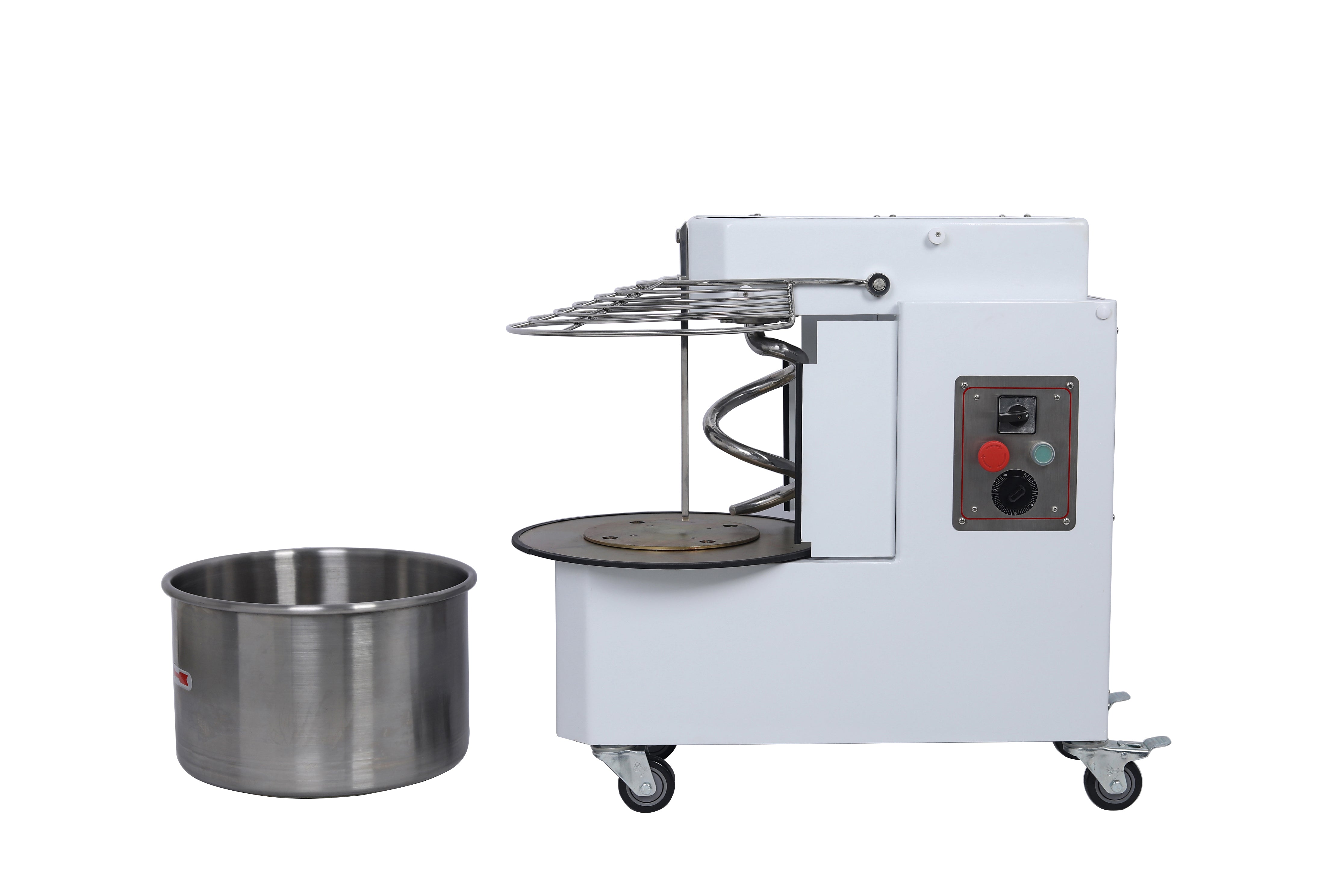

- S steel bowl, Safety Grid, dough divider and mixing spiral.
- Universal gear box and chain transmission system.

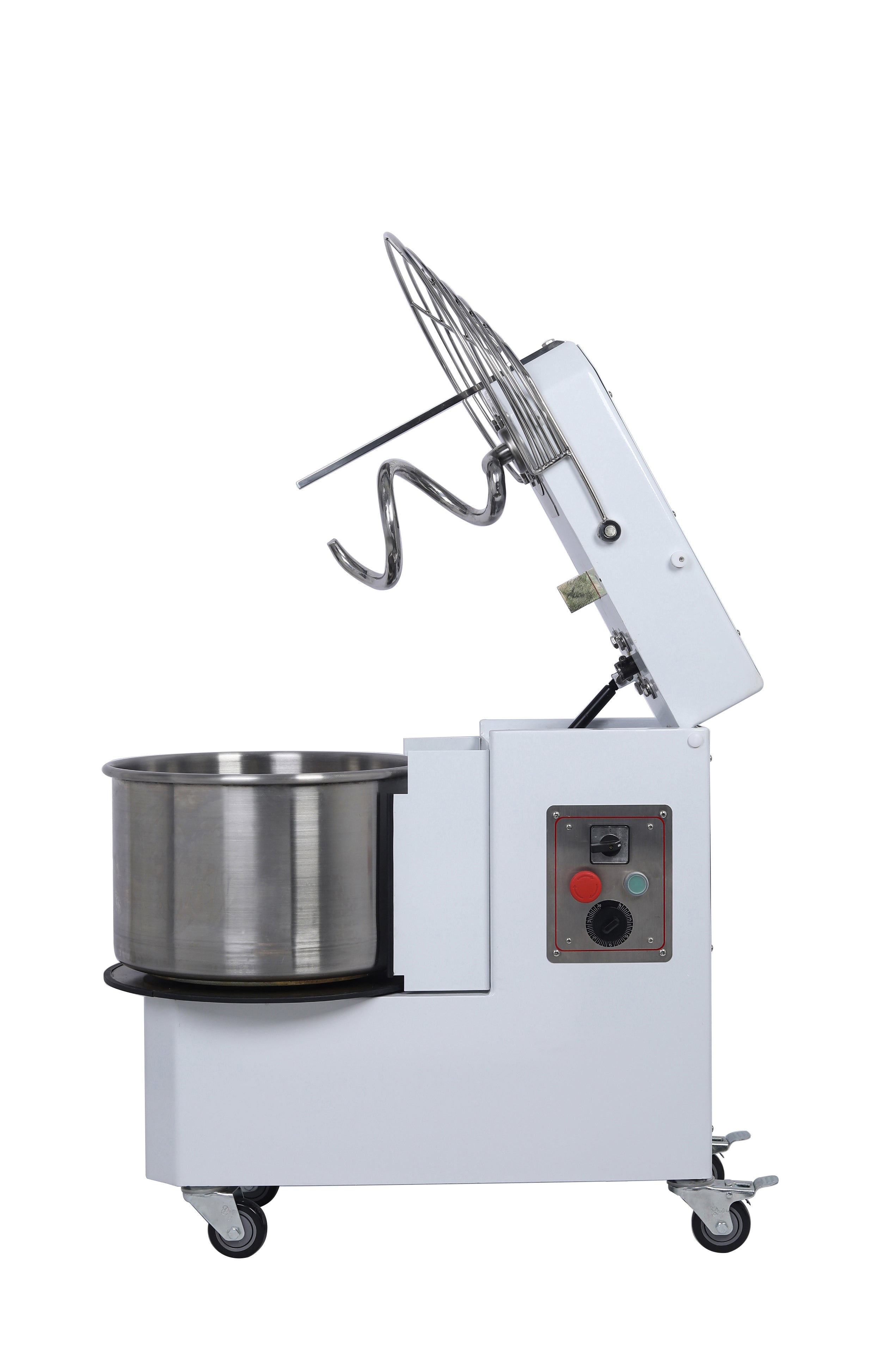

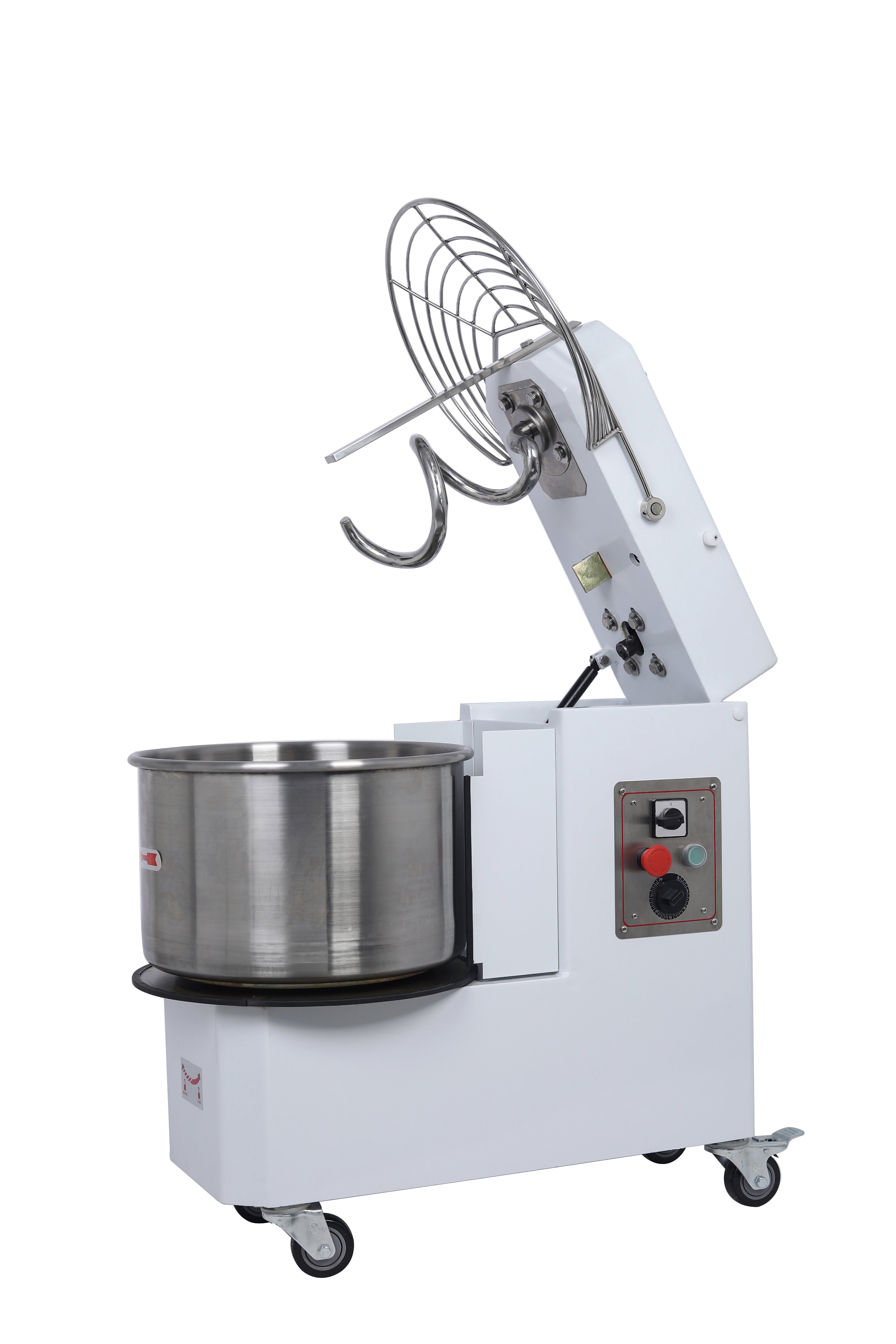

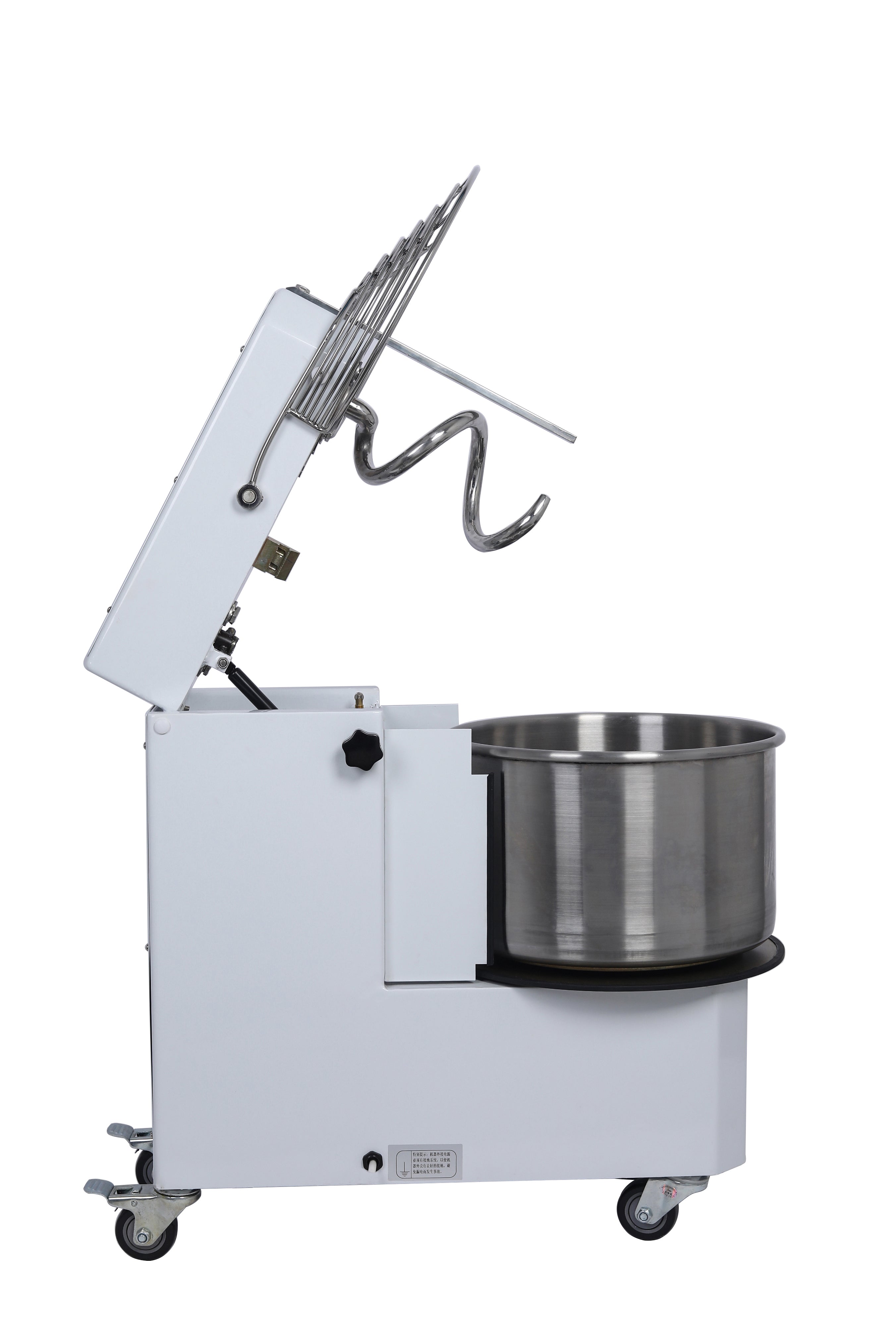

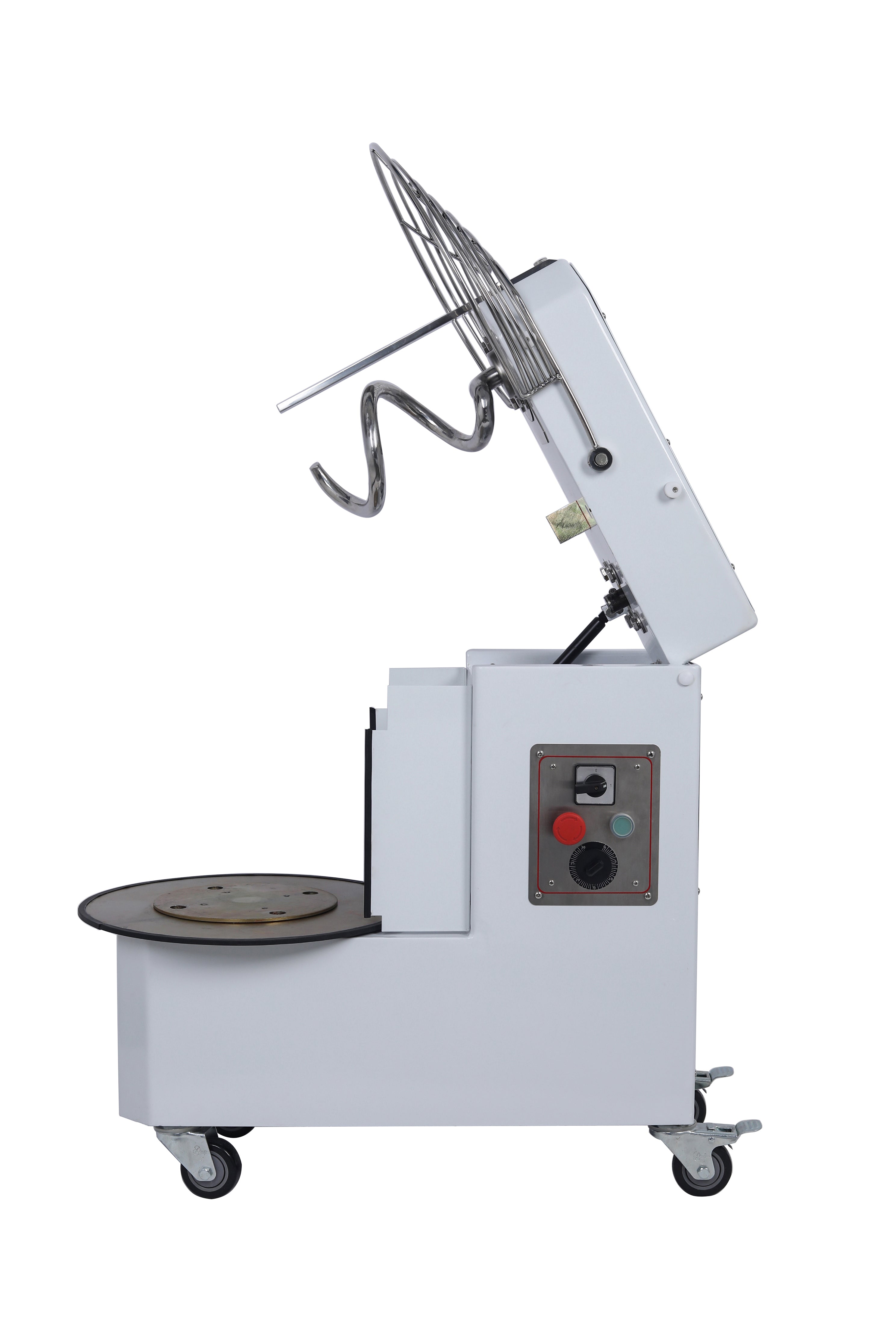

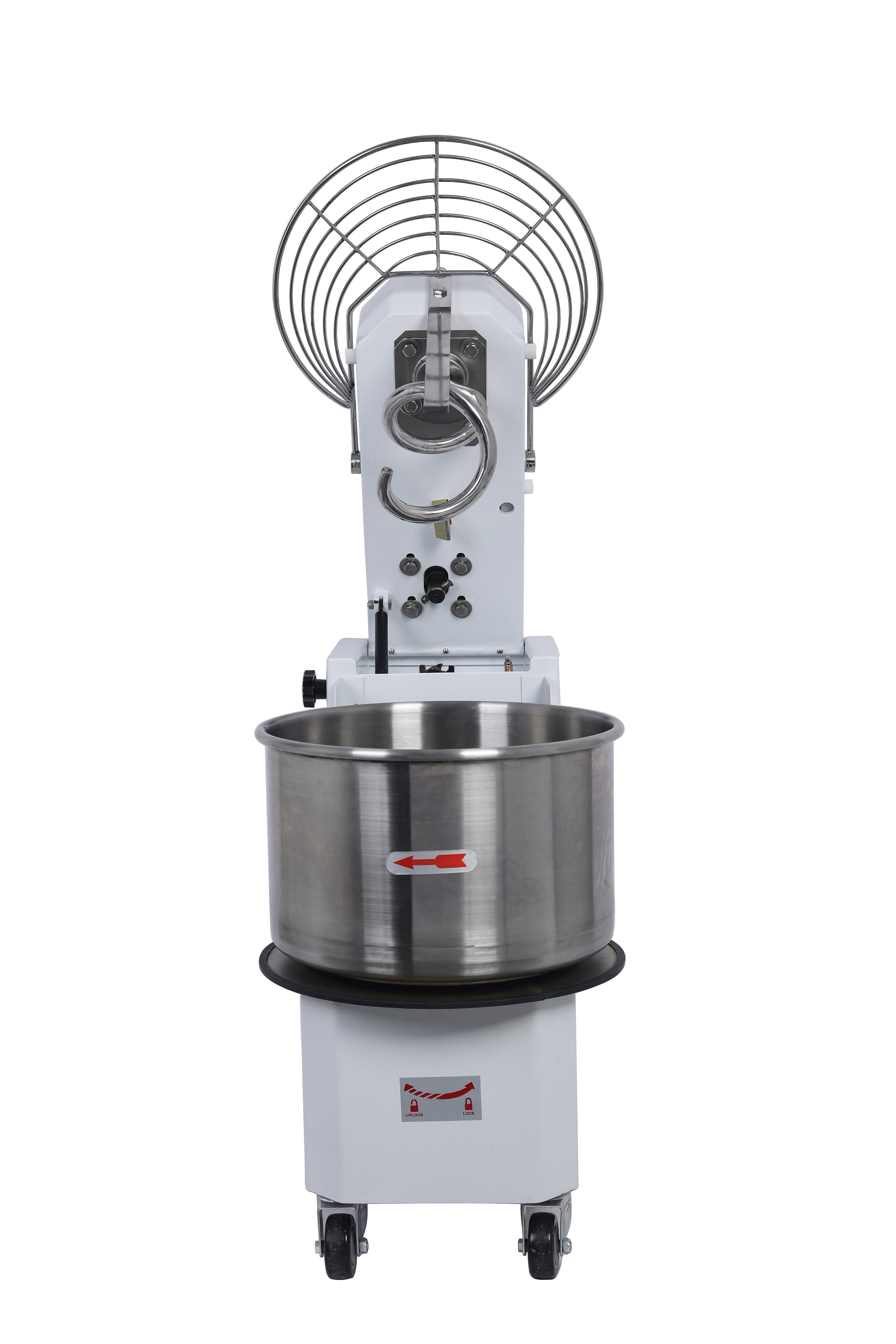

- Easy service access to motor and gear box by uplift motor and gear box.
- Strong motor with specially selected silent gear box. All machines pass limitation of 70 dB max. noise level.
- 24V Low voltage control box with emergency stop, 30 minute timer, push start button, main switch and 2 speed option switch
- Non- Voltage release electrical safety operation design with motor overload automatic protection.
- Easy Electrical control box service system. Just plug in and out to replace new control box.
- Wooden case packing with quick release design. Just take out the machine operation without using any special tool.
- Locking wheels are available as option.
- CE and RoHS certification by Factory with Declaration of Conformity and Self statement certification.
Model | Dimension & net weight | Capacity & Power | bowl Capacity |
JR-M10 | 700x400x620cm 65kg | 6kg 0.75/1.1KW | 10 Liter |
JRM-20 | 700x400x620cm 85kg | 10kg 0.75/1.1KW | 17 Liter |
JRM-25 | 720x400x620cm 87kg | 16kg 0.75/1.1KW | 22 Liter |
JRM-30 | 820x450x720cm 118kg | 22kg 1.5/2.0KW | 33 Liter |
JRM-50 | 840x500x720cm 125kg | 32kg 1.5/2.0KW | 42 Liter |
JRM-60 | 880x550x720cm 130kg | 38kg 1.5/2.0KW | 53 Liter |
Common feature: Spiral speed : 98rpm Bowl speed: 10rpm Voltage : 220v50hz single phase Apply water ratio : 1 kg flour to 0.6 kg water Attached with 4 castor with locker | |||
